10T CCM Billet Casting Machine With 1 Strand and Ladle Car / Ladle Turret
- Semi-portal, cross sliding function
- Ladle car or ladle turret
- radius: 6m
- Strand number :1 strand
- with ISO certification
We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.
Description:
1. Basic standby technical parameters:
|
Steel billet casting machine radius
|
6m
|
|
Strand quantity
|
1 strand
|
|
Ladle support type
|
Ladle car or ladle turret
|
|
Tundish carriage
|
Semi-portal, cross sliding function
|
|
Casting method
|
Metering nozzle, open casting
|
|
Secondary cooling
|
Water cooling , 1 adjusting circuit
|
|
Withdrawal straightening machine
|
Totally 5 roller, progressive straightening
|
|
Roll table
|
Chain group centralized drive
|
|
Dummy bar
|
Rigid, with self-adapting dummy bar head
|
|
Billet cutting
|
Flame cutting machine
|
|
Billet conveying
|
Group centralized live roller table
|
|
Cooling bank type
|
Simple cooling bed
|
2. Technical process description and capacity of steel billet CCM
Induction furnace:
|
Nominal capacity
|
10T
|
|
Tap-to-tap cycle
|
60min
|
|
Furnace quantity
|
2set
|
Production capacity
|
Working days
|
330 days/year
|
|
Average number of daily furnace
|
24/day
|
|
Production capacity
|
100,000t/year
|
3. Casting speed, productivity and strand quantity
R6m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:
|
Casting sectional area(mm)
|
100×100
|
125×125
|
150×150
|
|
Casting speed(m/min)
|
3.0
|
2.7
|
2.5
|
|
NO.
|
Billet
size
|
Casting speed
|
hourly output
(tons)
|
Daily output
24hour
(tons)
|
Annual output(330days)
(tons)
|
|
1
|
100×100
|
3.0m/min
|
12.01
|
288.
|
95123
|
|
2
|
125×125
|
2.7m/min
|
16.89
|
405
|
133,767
|
|
3
|
150×150
|
2.5m/min
|
21.72
|
508
|
167,640
|
The calculation results is the ideal state of the production, please according to own actual situation of adjustment.
|
Steel grade
|
Casting grade(m/min)
|
Effective deformation rate(ε)
|
Allowable deformation rate(εmax)
|
|
Straight carbon steel
|
1.8～2.5
|
Please refer to the computational table
|
0.25
|
|
Low alloy steel
|
1.3～2.0
|
Please refer to the computational table
|
0.15～0.2
|
4. CCM equipment parts list
|
№
|
Equipment name
|
Weight
|
Model and specification
|
Unit
|
Quantity
|
|
| |
|
1
|
Ladle car
|
5T
|
|
Set
|
2
|
|
|
2
|
Tundish car
|
2.5×2=5T
|
|
Set
|
2
|
|
|
3
|
Tundish
|
1.4×2=2.8T
|
|
piece
|
2
|
|
|
4
|
Mould
|
0.5×2=1T
|
150×150
|
Set
|
1
|
|
|
5
|
Foot roll of mould
|
0.01×2=0.02T
|
|
Set
|
1
|
|
|
6
|
Mould cover
|
0.1×2=0.2T
|
|
Set
|
1
|
|
|
7
|
Oscillator device
|
2×2=4T
|
|
Set
|
1
|
|
|
8
|
Secondary cooling spray tube
|
0.5×2=1T
|
|
Set
|
1
|
|
|
9
|
Secondary cooling guiding section rod
|
0.7×2=1.4T
|
|
Set
|
1
|
|
|
10
|
Secondary cooling vapor exhausting system
|
1.5T
|
|
Set
|
1
|
|
|
11
|
Withdrawal and straightening machine
|
5×2=10T
|
|
Set
|
1
|
|
|
12
|
Casting blank vibration prevention system
|
0.3×2=0.6T
|
|
Set
|
1
|
|
|
13
|
Dummy bar
|
0.9×2=1.8T
|
150×150
|
Set
|
1
|
|
|
14
|
Dummy bar storage device
|
0.7×2=1.4T
|
|
Set
|
1
|
|
|
15
|
Shears approach roller
|
2×2=4T
|
|
Set
|
1
|
|
|
16
|
Flame cutting machine
|
3T
|
|
Set
|
1
|
|
|
17
|
Automatic cut-to-length device
|
0.5T
|
|
Set
|
1
|
|
|
18
|
Travelling roller
|
2×2=4T
|
|
Set
|
1
|
|
|
19
|
Knockout roller
|
3.5T
|
|
Set
|
2
|
|
|
20
|
Steel transverse delivering machine
|
3.5T
|
|
Set
|
1
|
|
|
21
|
Hydraulic station system
|
2T
|
|
Set
|
1
|
|
|
22
|
Secondary cooling water breaker
|
|
|
Set
|
1
|
|
|
23
|
Cooling automation water distribution plant
|
1T
|
|
Set
|
1
|
|
|
24.1
|
Control panel
|
|
|
Set
|
1
|
|
|
24.2
|
Field instrument
|
|
|
Set
|
1
|
|
|
24.3
|
Computer system
|
|
|
Set
|
1
|
|
|
25
|
Steel platform
|
48T
|
|
|
1
|
|
Product Tags:
|
|

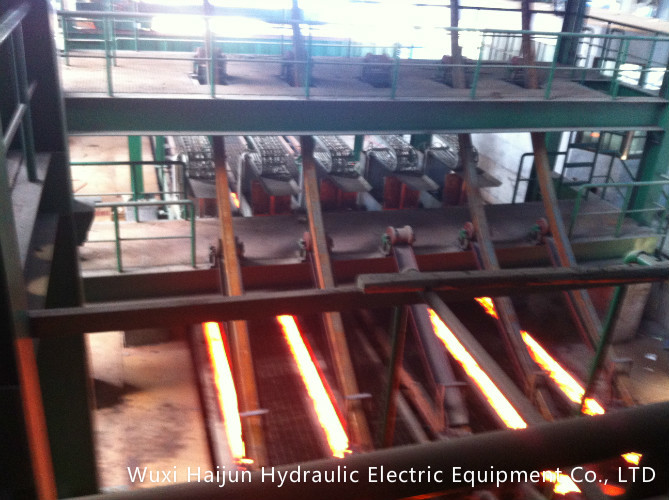

Scrap steel smelting 10T Continue Casting Machine With 1 Strand and Ladle Car / Ladle Turret Images
|
